Fabtech 01-06 GM C/K2500HD C/K3500 Non Dually 8in Perf. System w/Perf. Shocks

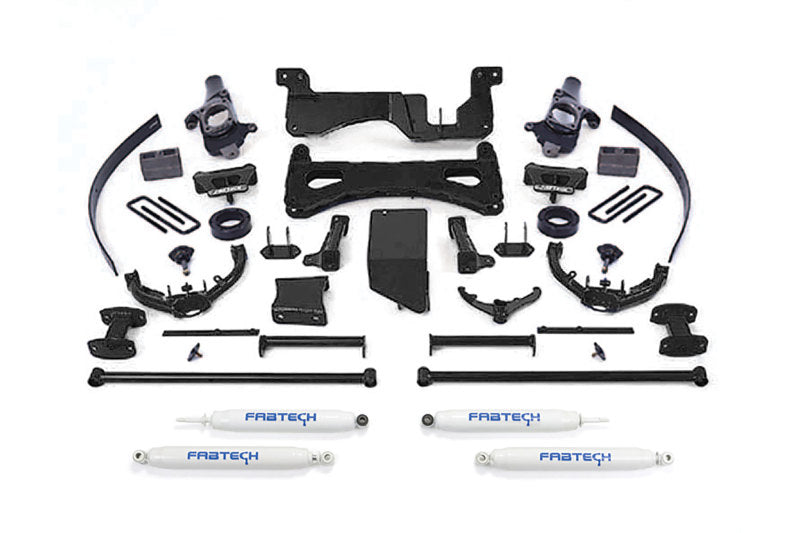

The 8in Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4in thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech's combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37in tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech's optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4'' block kit with 2'' add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.
TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/14.00R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 10. REQUIRES WELDING, EXHAUST, AND POSSIBLE FRONT DRIVE SHAFT MODS.; 12. DOES NOT FIT MODELS WITH QUADRASTEER.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 15. WILL EXPERIENCE SOME LOSS OF TURNING RADIUS.

Fitment:
Chevrolet Silverado 2500 HD Base 2001
Chevrolet Silverado 2500 HD Base 2002
Chevrolet Silverado 2500 HD Base 2003
Chevrolet Silverado 2500 HD Base 2004
Chevrolet Silverado 2500 HD Base 2005
Chevrolet Silverado 2500 HD LS 2001
Chevrolet Silverado 2500 HD LS 2002
Chevrolet Silverado 2500 HD LS 2003
Chevrolet Silverado 2500 HD LS 2004
Chevrolet Silverado 2500 HD LS 2005
Chevrolet Silverado 2500 HD LS 2006
Chevrolet Silverado 2500 HD LT 2001
Chevrolet Silverado 2500 HD LT 2002
Chevrolet Silverado 2500 HD LT 2003
Chevrolet Silverado 2500 HD LT 2004
Chevrolet Silverado 2500 HD LT 2005
Chevrolet Silverado 2500 HD LT 2006
Chevrolet Silverado 2500 HD WT 2003
Chevrolet Silverado 2500 HD WT 2004
Chevrolet Silverado 2500 HD WT 2005
Chevrolet Silverado 2500 HD WT 2006
Chevrolet Silverado 3500 Base 2001
Chevrolet Silverado 3500 Base 2002
Chevrolet Silverado 3500 Base 2003
Chevrolet Silverado 3500 Base 2004
Chevrolet Silverado 3500 Base 2005
Chevrolet Silverado 3500 LS 2001
Chevrolet Silverado 3500 LS 2002
Chevrolet Silverado 3500 LS 2003
Chevrolet Silverado 3500 LS 2004
Chevrolet Silverado 3500 LS 2005
Chevrolet Silverado 3500 LS 2006
Chevrolet Silverado 3500 LT 2001
Chevrolet Silverado 3500 LT 2002
Chevrolet Silverado 3500 LT 2003
Chevrolet Silverado 3500 LT 2004
Chevrolet Silverado 3500 LT 2005
Chevrolet Silverado 3500 LT 2006
Chevrolet Silverado 3500 WT 2004
Chevrolet Silverado 3500 WT 2006
GMC Sierra 2500 HD Base 2002
GMC Sierra 2500 HD Base 2003
GMC Sierra 2500 HD Base 2004
GMC Sierra 2500 HD Base 2005
GMC Sierra 2500 HD SL 2001
GMC Sierra 2500 HD SL 2002
GMC Sierra 2500 HD SL 2006
GMC Sierra 2500 HD SLE 2001
GMC Sierra 2500 HD SLE 2002
GMC Sierra 2500 HD SLE 2003
GMC Sierra 2500 HD SLE 2004
GMC Sierra 2500 HD SLE 2005
GMC Sierra 2500 HD SLE 2006
GMC Sierra 2500 HD SLT 2001
GMC Sierra 2500 HD SLT 2002
GMC Sierra 2500 HD SLT 2003
GMC Sierra 2500 HD SLT 2004
GMC Sierra 2500 HD SLT 2005
GMC Sierra 2500 HD SLT 2006
GMC Sierra 2500 HD WT 2003
GMC Sierra 2500 HD WT 2004
GMC Sierra 2500 HD WT 2005
GMC Sierra 2500 HD WT 2006
GMC Sierra 3500 Base 2002
GMC Sierra 3500 Base 2003
GMC Sierra 3500 Base 2004
GMC Sierra 3500 Base 2005
GMC Sierra 3500 SL 2001
GMC Sierra 3500 SL 2002
GMC Sierra 3500 SL 2006
GMC Sierra 3500 SLE 2001
GMC Sierra 3500 SLE 2002
GMC Sierra 3500 SLE 2003
GMC Sierra 3500 SLE 2004
GMC Sierra 3500 SLE 2005
GMC Sierra 3500 SLE 2006
GMC Sierra 3500 SLT 2001
GMC Sierra 3500 SLT 2002
GMC Sierra 3500 SLT 2003
GMC Sierra 3500 SLT 2004
GMC Sierra 3500 SLT 2005
GMC Sierra 3500 SLT 2006
GMC Sierra 3500 WT 2004
GMC Sierra 3500 WT 2005
GMC Sierra 3500 WT 2006
